“We have never had more than 850 customers per night
and the first two nights that we used the searchlight
we had over 1300 each evening. This light is awesome.
I love it!” John Neal, Final Exit Productions
Model | Brightness LUX)/ At 100 yards |
1KW | 4110 LUX |
2KW | 9600 LUX |
3KW | 15000 LUX |
4KW | 20200 LUX |
5KW | 27400 LUX |
7KW | 42500 LUX |
This is LUX not Candlepower, read above to understand difference |
The full 360 degree rotation allows your light to be seen from all sides. You can adjust the height of the beam to be more straight up to allow pinpointing your location easily or closer to the horizon to attract attention from the maximum distance.

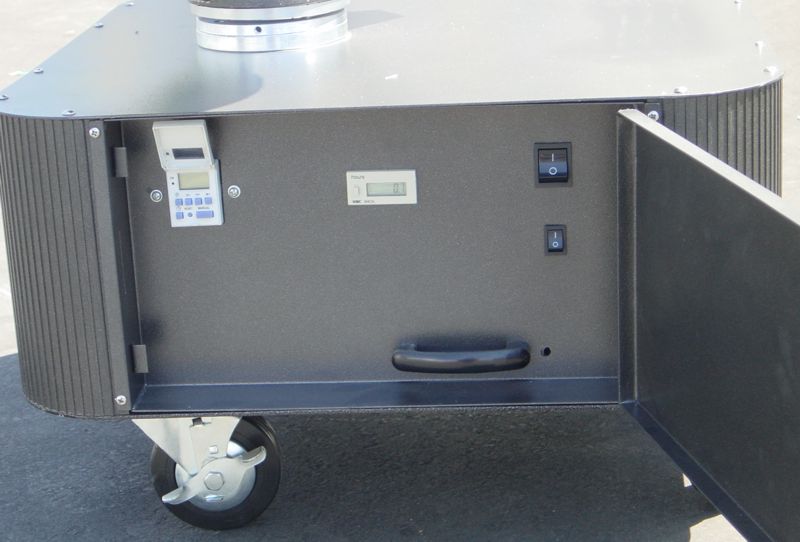

The built in digital hour meter will show you exactly how many hours your light has been used. This meter has a 3 year battery back-up in case of power failure.
Optional colored lenses are available but these will reduce the light output (Red 25% loss, Yellow 10% loss, Blue 12% loss, Green 18% loss). Only available for 2KW through 5KW.
Order your light today to start attracting the attention you deserve!
Model |
Xenon 1 |
Xenon 2 |
Xenon 3 - 4 beam |
Xenon 5 |
Xenon 5 - 4 beam |
Xenon 7 |
|
Volts |
115 or 230 |
115 or 230 |
230 |
230 |
230 |
230 |
|
Phase |
1 |
1 |
1 or 3 |
1 or 3 |
1 or 3 |
1 or 3 |
|
Hertz |
60 or 50 |
60 or 50 |
60 or 50 |
60 or 50 |
60 or 50 |
60 or 50 |
|
Amps |
10 or 6 |
18 or 9 |
65 |
26 |
118 |
38 |
|
Lamp Type |
Xenon 1KW |
Xenon 2KW |
Four Xenon 3KW |
Xenon 5KW |
Four Xenon 5KW |
Xenon 7KW |
|
Lamp
Life as per Manufacturer |
800-1000 hrs. |
800-1000 hrs. |
800 hrs. |
800 hrs. |
800 hrs. |
800 hrs. |
|
Beam Rotation | Full consistent 360 degree rotation with adjustable angle. Pans right 360 degrees then pans left 360 degrees. | Full consistent 360 degree rotation with adjustable angle. Pans right 360 degrees then pans left 360 degrees. | Each Beam Rotates in sync with the other beams in separate circular patterns | Full consistent 360 degree rotation with adjustable angle. Pans right 360 degrees then pans left 360 degrees. | Each Beam Rotates in sync with the other beams in separate circular patterns | Full consistent 360 degree rotation with adjustable angle. Pans right 360 degrees then pans left 360 degrees. | |
Size |
22"x22"x40" |
22"x22"x46" |
47" x 47" x 59" |
28" x 32" x 51" |
47" x 47" x 59" |
28" x 32" x 53" |
|
Weight (lbs) |
105 |
118 |
550 |
172 |
770 |
225 |
|
Mounting | Ground or Roof | Ground or Roof |
Ground or Roof Optional Trailer Optional Generator |
Ground or Roof |
Ground or Roof Optional Trailer Optional Generator |
Ground or Roof | |
Color Temperature |
6,200ºK |
6,200ºK |
6,200ºK |
6,200ºK |
6,200ºK |
6,200ºK |
|
Options | |||||||
Color Filters (Changes color of light) Red 25% loss, Yellow 10% loss, Blue 12% loss, Green 18% loss |
